***This kit includes 60" long bars for Regular Cab Long Bed, Extended Cab Short Bed and Crew Cab Short Bed Models***

For 1999-2010 Ford and 1994-2022 Dodge HD Leaf Spring Rear Suspension Trucks Built in house at WCFab carrying a LIFETIME WARRANTY against bending or breaking (to original purchaser).

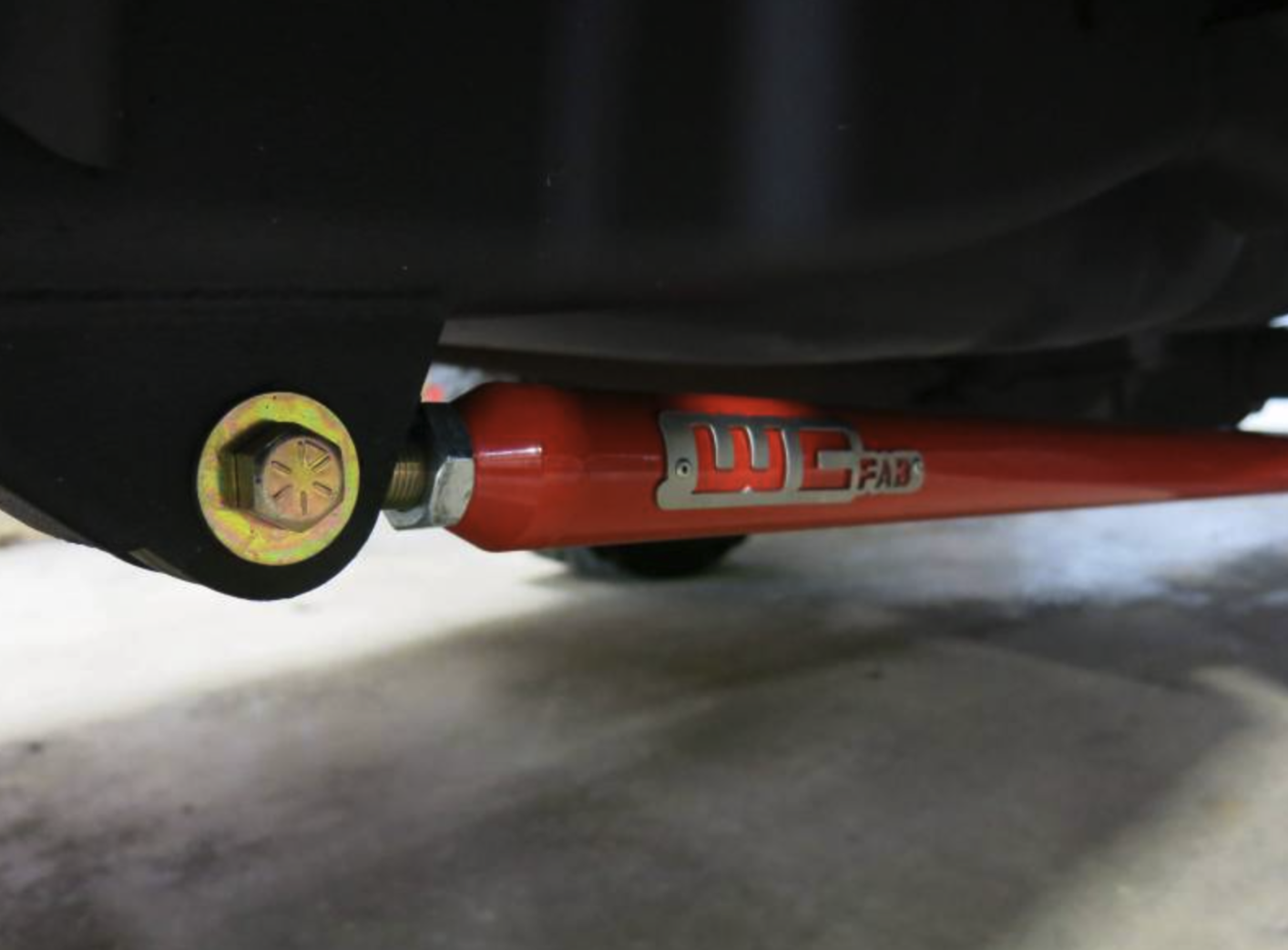

Traction bars are a necessary upgrade when increasing the horsepower on your diesel truck to prevent the axle from twisting which can lead to broken u-joints, driveshafts, and even twisted axle housings. Our traction bar brackets weld on to the bottom of the axle tube and weld to the frame on the front end. We use a high quality RockJock rebuild-able and grease-able “Johnny Joint” heim connection at the frame to allow for adjustment of torsion on the axle or if you raise/lower the rear of your truck. At the axle connection we use a heavy duty Poly Urethane Bushing for decreased noise and vibration which is common complaint if a solid heim is used on both ends. Grade 8 hardware connects the bars to the mounts on the frame and axle. We complete our traction bar kit with our professional in house powder coat process in your color choice and comes standard with a epoxy Primer base coat before the final color which increases corrosion resistance by more than ten times compared to just your standard powder single coat application.

If you have extended cab long bed, or crew cab long bed truck use part number WCF100855. If you have a Lift Kit and your REAR lift Block is taller than 5" or your total lift height is 6" or greater, use part number WCF100855. If your truck is on a big lift, please measure from your axle mounting point to your frame mounting point to ensure the bar length will work properly for your application before placing your order.

***2011-2022 Ford F-250 and F-350 Please see WCF100388 and WCF100399***

***Not compatible with 2014-2022 Ram 2500 trucks equipped with rear coil springs / linked suspension setups***

***For Regular Cab Long Bed, Extended Cab Short Bed and Crew Cab Short Bed Models***

• LIFETIME WARRANTY against bending or breaking (to original purchaser)
• 60" Heavy Duty Bars
• Poly Bushings
• RockJock Johnny Joints
• Axle and Frame side weld on mounts
• Grade 8 Hardware
• Powder Coating with epoxy primer base coat
